Infrared Thermometer Battery Pack (INR14500 3.7V 900mAh)

Q: Is the battery suitable for medical devices?

The battery includes an integrated protection circuit (PCM) for safer operation. If specific compliance documentation is required, requirements can be aligned to the target market and standards.

Q: Can it replace AA alkaline batteries directly?

It can be used as a rechargeable AA-size solution, but the device electrical design must support the lithium system (including charging method and input range). Share device specs to confirm compatibility.

Q: Can you adjust terminals or add connectors?

Yes. Terminal and connection options include welded tabs, wire leads, plug types, or custom contact plates based on the device holder and assembly process.

Q: How fast can I get samples?

Sampling can be supported with spec sheet and drawing support once key requirements are confirmed (holder type, terminals/connector, and charging method).

A rechargeable AA-size (14500) lithium solution for handheld non-contact thermometers—supporting instant boot-up, multi-day standby, and safer operation with integrated PCM protection.

Get a Quote

Medical Device Power Solution

Custom Li-Po Battery

3.7V

Nominal Voltage

900mAh

Nominal Capacity

14500

AA-Size Form Factor

Image placeholders are included below. Replace URLs anytime to update images.

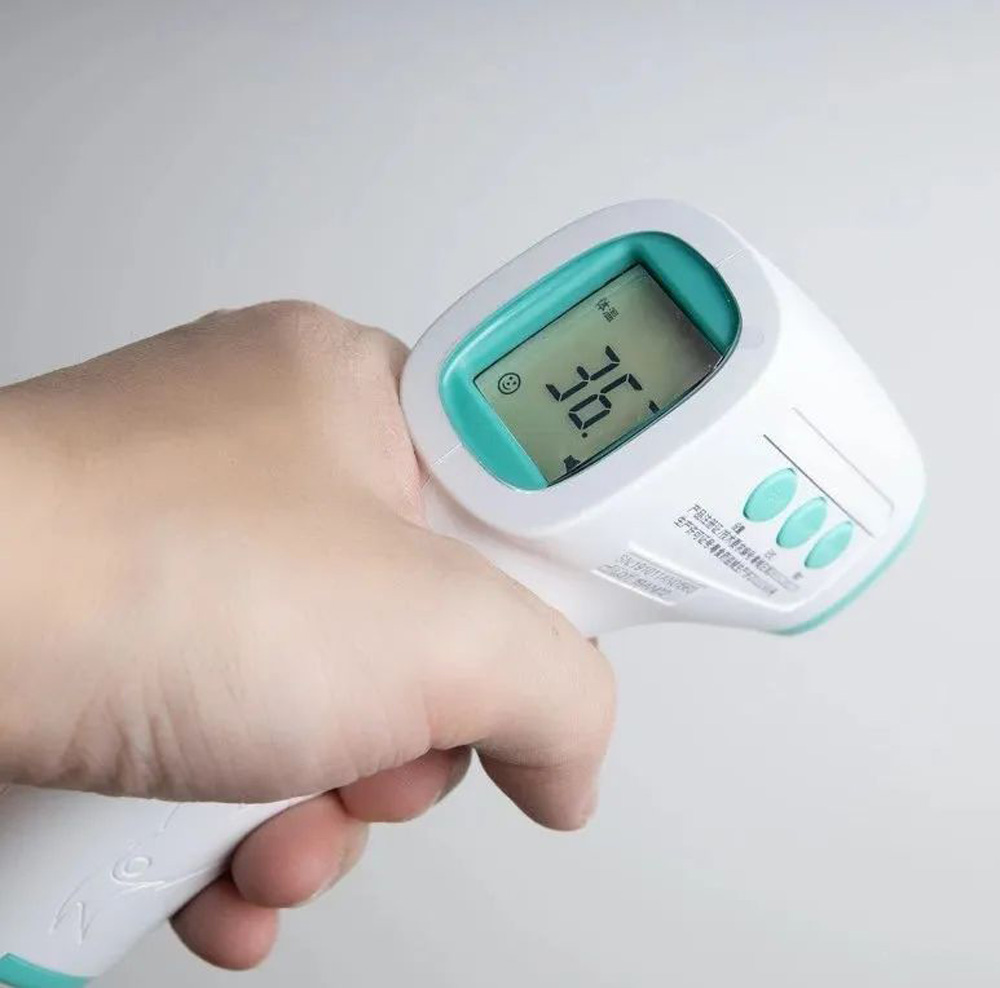

Suggested hero image: handheld IR thermometer in clinic/public screening scenario.

Contents

1) Project Snapshot ·
2) Market & Use Case Trends ·
3) Battery Requirements ·
4) Integration Method ·
5) Pain Points Solved ·
6) Product Images ·
7) Battery Parameters ·
8) Safety & Reliability ·
9) Off-the-Shelf vs Custom ·
10) FAQ ·
11) Contact

1) Project Snapshot

Device / Scenario

Handheld non-contact infrared thermometer for clinics and public health screening.

Key Target

Instant boot-up, multiple-day standby, ergonomic fit.

PKNERGY Customization

14500 cylindrical cell + custom-fit holder, integrated PCM, optional plug-in connector.

A handheld IR thermometer requires fast power-up for sensor and display initialization, while also maintaining charge during standby. PKNERGY provides a drop-in rechargeable 14500 solution designed for stable output, safer discharge behavior, and plug-and-play electrical compatibility.

2) Market & Use Case Trends

Where infrared thermometers are used: clinical triage & outpatient use, public area temperature checks (schools/airports/events), and home healthcare (including pediatric care).

Across modern medical diagnostics, many brands are shifting from disposable alkaline batteries to rechargeable systems to improve device uptime, reduce recurring maintenance, and minimize waste. In high-frequency screening environments, long standby and instant response become key user requirements.

3) Key Battery Requirements for This Device

Performance requirements

Stable 3.7V output for instant sensing & LCD boot
Standby-friendly low self-discharge to preserve charge
Peak current support for buzzer, MCU, and display bursts

Integration & safety requirements

AA-size cylindrical form factor to fit existing molds
Rechargeable cycle life to reduce replacement frequency
Safer discharge behavior with integrated PCM protection

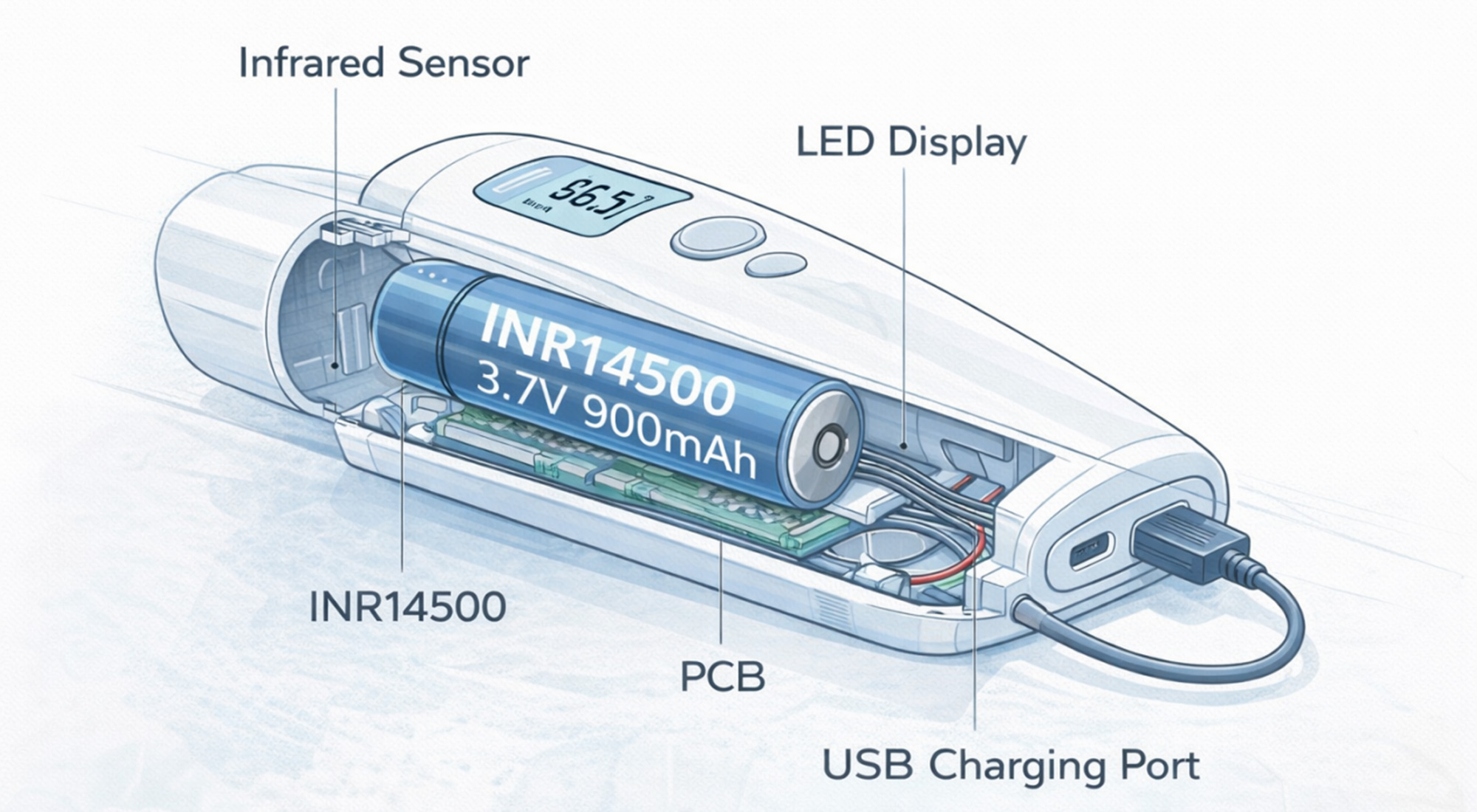

4) How the Battery Is Integrated

Installation location: standard AA battery holder (14500 size)
Role: primary (and only) power source
What it powers: infrared sensor module, MCU, buzzer, and LCD display

For compact medical devices that require flexible shapes or custom cavities, PKNERGY can also provide
custom lithium polymer batteries
and
custom LiFePO4 batteries.

5) Solving End-User Pain Points

Pain Point 1: Frequent alkaline battery replacement

Problem: In high-volume screening environments, disposable AA batteries can require frequent swaps, increasing maintenance workload and waste.
PKNERGY solution: A rechargeable INR14500 Li-ion cell (3.7V 900mAh) designed for stable output and extended standby.
Result: Reduced replacement frequency and operating cost, improved uptime, and less disposable battery waste.

Pain Point 2: Inconsistent performance with low-grade cells

Problem: Voltage drop can lead to sensor lag, boot failures, or unstable display behavior during frequent use.
PKNERGY solution: Stable 3.7V platform plus integrated PCM protection for safer and more consistent discharge behavior.
Result: Faster boot-up and more stable measurement workflow in daily operation.

Pain Point 3: Fit/connector mismatch with device mold

Problem: Some replacement batteries do not match the casing, terminals, or connector requirements, causing installation friction or unreliable contact.
PKNERGY solution: Precisely matched 14500 form factor with correct terminals, shrink wrap options, and optional plug-in connector or welded tabs.
Result: Plug-and-play integration with minimal mechanical or electrical changes.

6) Product Images

Replace these image URLs with your WordPress Media Library links (recommended: 1200px+ wide, JPG/PNG).

Battery external view — best placed near specs and overview.

PCM/terminal/connector detail — best placed in safety & customization section.

7) Battery Specification (INR14500)

Parameter	Value	Why it matters
Cell Model	INR14500	AA-size cylindrical rechargeable type
Nominal Voltage	3.7V	Supports rapid boot for sensor & display logic
Capacity	900mAh	Enables multi-day standby in typical usage
Size	14 × 50 mm	Matches standard AA holder for easy integration
Charge / Discharge Limit	4.2V / 2.5V	Safe operating window for continuous duty
Current	Charge 0.5A / Discharge 1A	Supports peak draw during sensing and alerts
Cycle Life	≥ 300 cycles @ 80% DOD	Long-lasting under frequent use
Weight	~ 20g	Lightweight for handheld ergonomics

8) Safety & Reliability

Integrated PCM protection

Over-voltage / under-voltage protection
Over-current and short-circuit protection
Safer discharge behavior for healthcare usage

Quality control & customization

Functional test + insulation check + capacity verification
Terminal options: welded tabs / wire leads / contact plates
Shrink color and connector matching available

Need other device power designs? Explore:
Portable Detection Device Power Solution ·
Consumer Electronics Power Solution ·
Security Devices Power Solution

9) Off-the-Shelf vs PKNERGY Custom (Quick Comparison)

Feature	Off-the-Shelf Battery	PKNERGY Custom Pack
Fit & Compatibility	Generic AA cell, mixed terminal standards	Precisely matched casing, terminals, and holder
Output Stability	Variable, may drop under peak load	PCM-stabilized behavior for more reliable boot
Safety Features	Limited or inconsistent protection	Full protection circuit and QC process
Terminal Options	Fixed	Plug, spot-weld, wire leads, custom contact plates
Supply Chain Support	Inconsistent sourcing	Scalable, documented production support

10) FAQs

How long does the battery last?

In typical handheld usage, it can support hundreds of measurements per charge plus multiple-day standby. Actual runtime depends on display brightness, buzzer usage, and measurement frequency.

Is the battery suitable for medical devices?

The pack includes an integrated protection circuit (PCM) for safer operation. If your project requires specific compliance documentation, share your target market and standards and we can align the solution accordingly.

Can it replace AA alkaline batteries directly?

It can be used as a rechargeable solution in AA-size holders, but device electrical design must support the lithium system (including charging method and input range). Share your device model/spec and we’ll confirm compatibility.

Can you adjust terminals or add connectors?

Yes. We can provide welded tabs, wires, plug types, or custom contact plates based on your device holder and assembly process.

How fast can I get samples?

We can support sampling with spec sheet and drawing support once key requirements are confirmed (holder type, terminals/connector, and charging method).

11) Contact Cassie — PKNERGY

Need a rechargeable 14500 (AA-size) battery solution for infrared thermometers or other medical handheld devices? Send your device requirements and we’ll recommend the best configuration, terminals, and protection strategy.
