Lithium-ion Battery Pack

C9074170HP 3.5V 24Ah

High-Power Output in a Compact Pouch Format

24Ah Nominal Capacity

The cell provides a nominal capacity of 24,000mAh and a minimum capacity of 23,500mAh when measured at a 0.2C discharge rate.

Approximately 84Wh Energy

With a nominal voltage of 3.5V and a capacity of 24Ah, the cell provides approximately 84Wh of nominal energy.

3C Continuous Discharge

The maximum specified continuous discharge current is 72A, allowing the cell to support applications with sustained high-power demand.

5C Burst Discharge

The cell supports up to 120A burst discharge for a maximum of 60 seconds, making it suitable for temporary peak loads such as motor startup, acceleration and actuator operation.

Low Internal Resistance

Initial AC internal resistance is specified at no more than 1.6mΩ when measured at 1kHz and approximately 50% SOC.

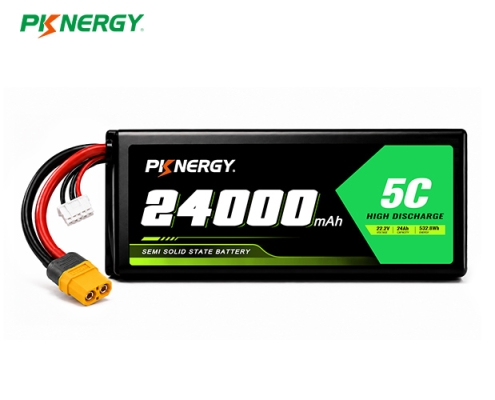

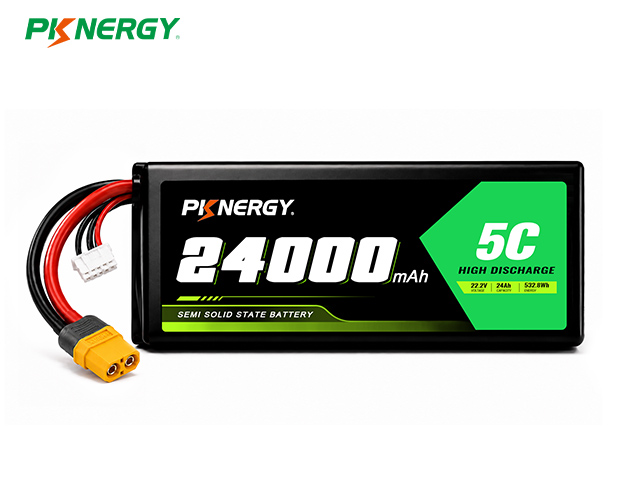

Compact Flat Structure

The maximum cell thickness is 9.3mm, helping engineers create relatively thin and space-efficient high-power battery modules.

Rapid Charging Capability

The cell supports a maximum charging current of 0.5C, equivalent to 12A, with a reference rapid charging time of approximately three hours.

Custom battery for your project

SPECIFICATION

No.	Item	Specification	Remarks

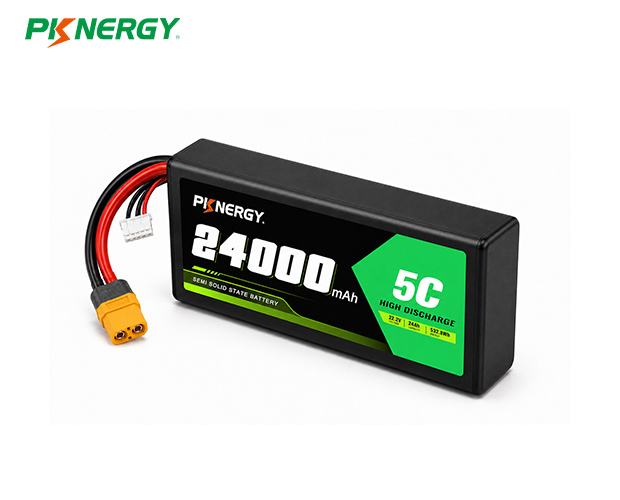

1	Battery Type	Rechargeable lithium-ion polymer pouch cell	Bare cell
2	Model	SDL-C9074170HP	Subject to final model confirmation
3	Configuration	1S1P	Single cell
4	Nominal Capacity	24,000mAh	At 0.2C discharge
5	Minimum Capacity	23,500mAh	At 0.2C discharge
6	Nominal Voltage	3.5V	—
7	Nominal Energy	Approx. 84Wh	3.5V × 24Ah
8	Charge Voltage	4.20 ±0.02V	CC/CV charging
9	Standard Charge Current	0.2C / 4.8A	According to the main specification table
10	Rapid Charge Current	0.5C / 12A	—
11	Maximum Charge Current	0.5C / 12A	—
12	Standard Charging Time	Approx. 6 hours	Reference value
13	Rapid Charging Time	Approx. 3 hours	Reference value
14	Continuous Discharge Current	3C / 72A	Maximum specified continuous current
15	Burst Discharge Current	5C / 120A	Maximum 60 seconds
16	Discharge Cut-off Voltage	2.5V	Per cell
17	Initial Internal Resistance	≤1.6mΩ	AC 1kHz, approximately 50% SOC
18	Charging Temperature	0°C to 45°C	—
19	Discharging Temperature	0°C to 45°C	—
20	Cell Weight	Approx. 255g	—
21	Maximum Dimensions	9.3 × 74.5 × 172mm	Thickness × width × length
22	Short-Term Storage Temperature	0°C to 35°C	Less than one month
23	Long-Term Storage Temperature	10°C to 25°C	More than one month
24	Ex-factory SOC	At least 25%	OCV not lower than 3.5V

Characteristics

Electrochemical performance characteristics

Test Item	Performance Requirement	Test Condition
Standard Discharge Capacity	≥23,500mAh	4.8A discharge to 2.5V at 25 ±5°C
Cycle Life	300 cycles	0.5C charge and discharge test
Capacity after 300 Cycles	≥18,800mAh	At least 80% of initial minimum capacity
Initial Internal Resistance	≤1.6mΩ	AC 1kHz at approximately 50% SOC
28-Day Storage Capacity	≥19,975mAh	Stored for 28 days at 25°C
Storage Capacity Retention	≥85%	Based on initial minimum capacity
Shipment SOC	≥25%	OCV ≥3.5V
