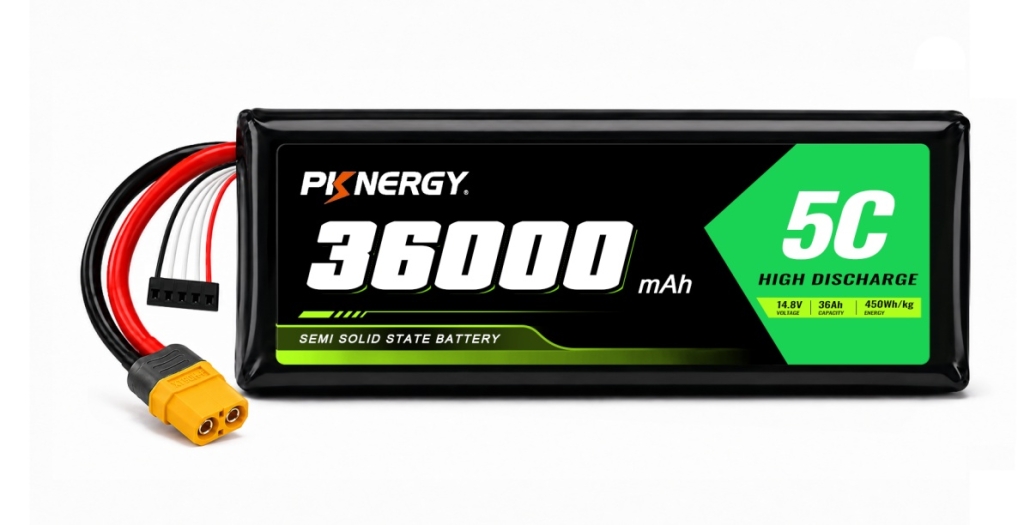

Semi-Solid-State High Energy Density UAV Battery
10975175GSH2 14.8V 36000mAh
Compact High-Energy UAV Battery with High-Current Output
36,000mAh High Capacity
Provides extended operating time for demanding UAV applications.
72A Continuous / 180A Burst Discharge
Supports 2C continuous discharge and 5C burst output (≤15s) for high-power requirements.
450Wh/kg High Energy Density
Delivers an excellent energy-to-weight ratio, helping reduce UAV weight while maintaining long flight endurance.
Compact & Lightweight Design
Weighs approximately 1,150g with dimensions of 45.5 × 78 × 195mm.
Wide Temperature Range
Supports 0°C to 45°C charging and -20°C to 55°C discharging for reliable operation in different environments.
≥200 Cycle Life
Ensures stable performance through repeated charge and discharge cycles.
Voltage Limits
Charge cutoff: 17.0V | Discharge cutoff: 9.2V
SPECIFICATION
ELECTROCHEMICAL PERFORMANCE
Our Services
1. Customization Support
- Tailored li polymer battery solutions based on your project requirements.
- Flexible options for voltage, capacity, size, and BMS integration.
- Professional design assistance from concept to final product.
2. Fast Production & Delivery
- Efficient manufacturing process ensuring quick turnaround times.
- Global shipping with secure packaging to protect your order.
3. Quality Assurance
- 100% quality inspection before delivery.
- Compliance with international safety and performance standards.
4. After-Sales Support
- Dedicated technical support for troubleshooting and guidance.
- Warranty coverage for peace of mind.
- Quick response to inquiries and issue resolution.
5. Professional Consultation
- Expert recommendations for the best battery solution for your application.
- Comprehensive project evaluation to optimize performance and cost.
Warranty
The warranty period for this product is 1 year from the date the product left the manufacturer’s door.

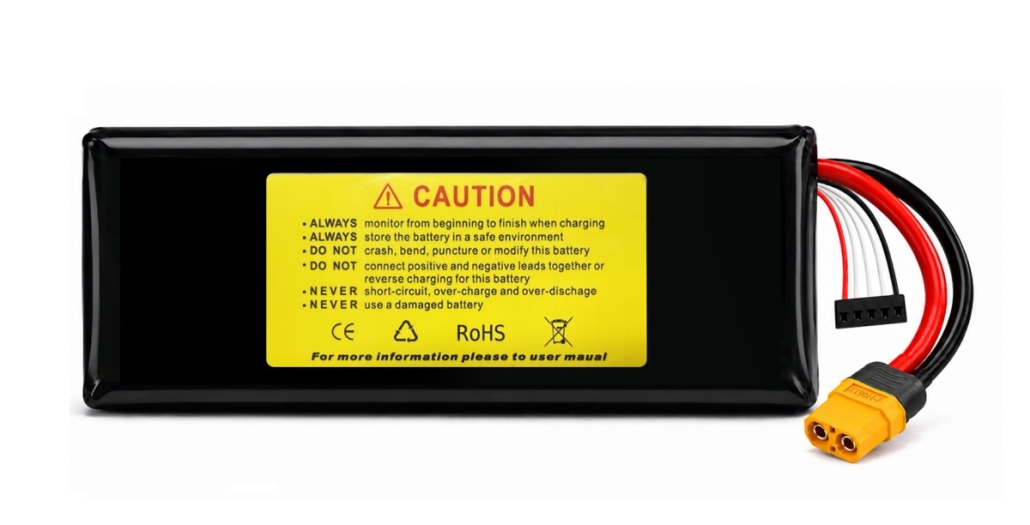

Battery Packing Label
The following warnings should be indicated on the battery pack labels.
- Use a specified charger.
- Do not throw the battery into fire, or heat.
- Do not short-circuit the battery terminals.
- Do not disassemble the battery.
Common Application Scenarios
Lorem ipsum dolor sit amet
Related Products
Product FAQs
1. What is the nominal capacity of the C10543125MP?
The nominal capacity is 11,500mAh. The specified minimum capacity is 10,975mAh at a 0.2C discharge rate.
2. What is the nominal energy?
The nominal energy is approximately 40.25Wh, based on a nominal voltage of 3.5V and a nominal capacity of 11.5Ah.
3.What is the maximum continuous discharge current?
The maximum specified continuous discharge current is 3C, equivalent to 34.5A.
4. What is the maximum burst discharge current?
The cell supports up to 5C or 120A for a maximum duration of 60 seconds.
5.What is the maximum charging current?
The maximum specified charging current is 0.5C, equivalent to 5.75A.
What is the cycle life?
The cell is specified to retain at least 80% of its initial minimum capacity after 300 cycles under the defined laboratory conditions.
