Lithium-Ion Battery
Approved IEC CE UL Certificates
Lithium-ion Battery

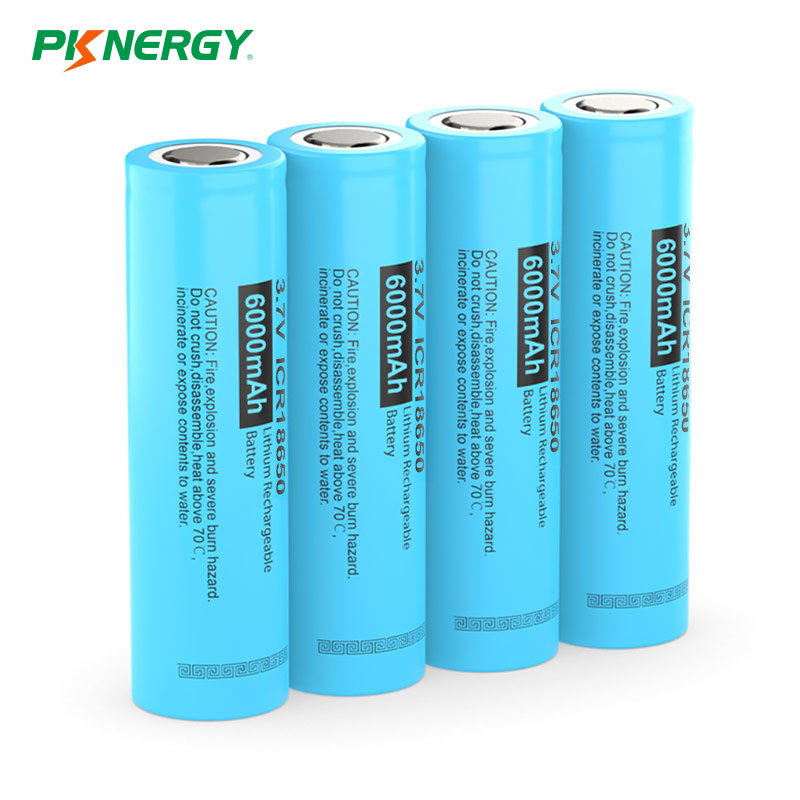

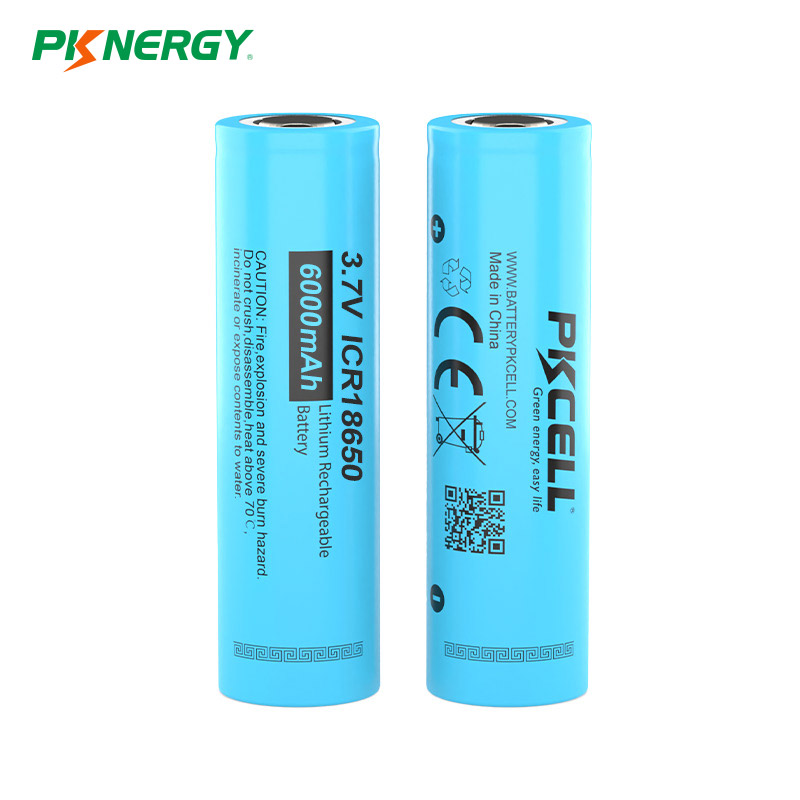

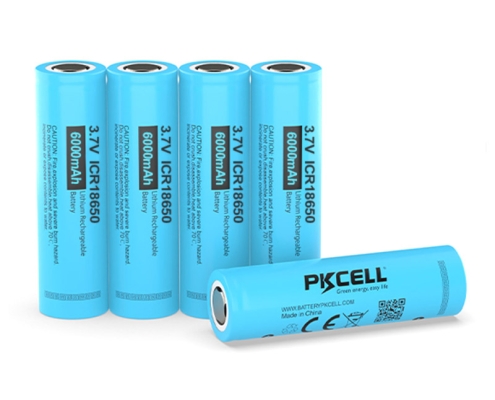

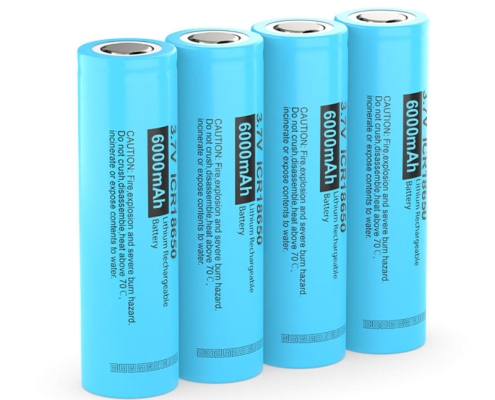

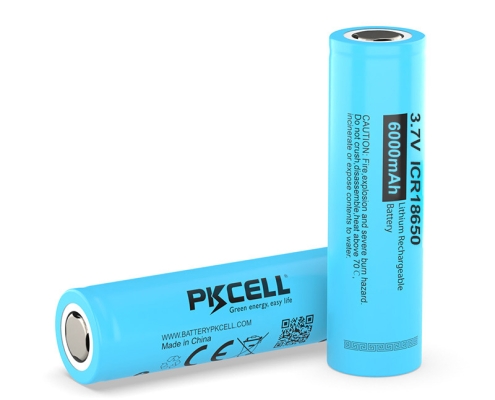

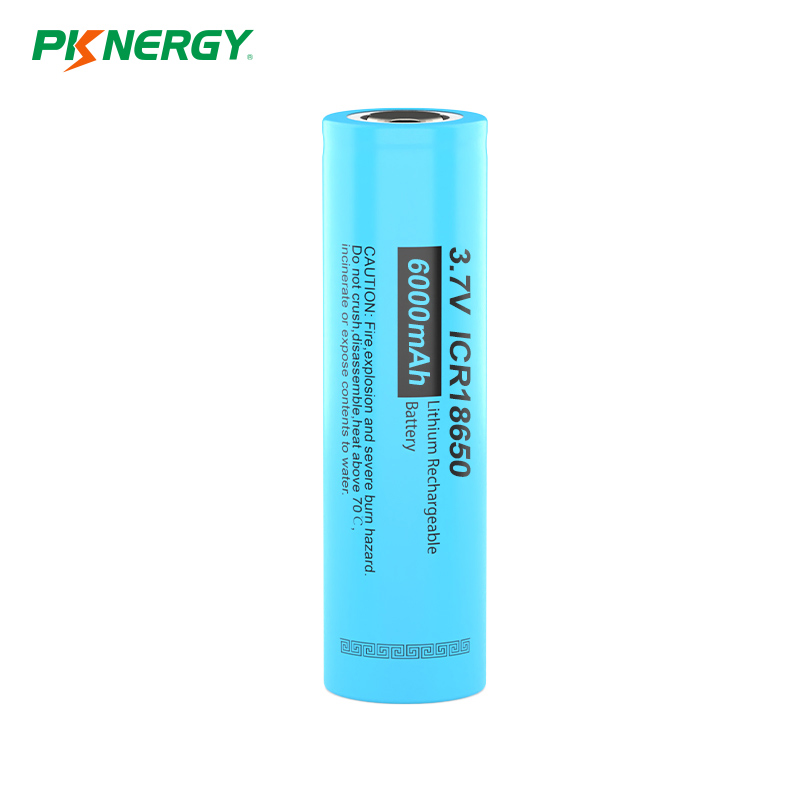

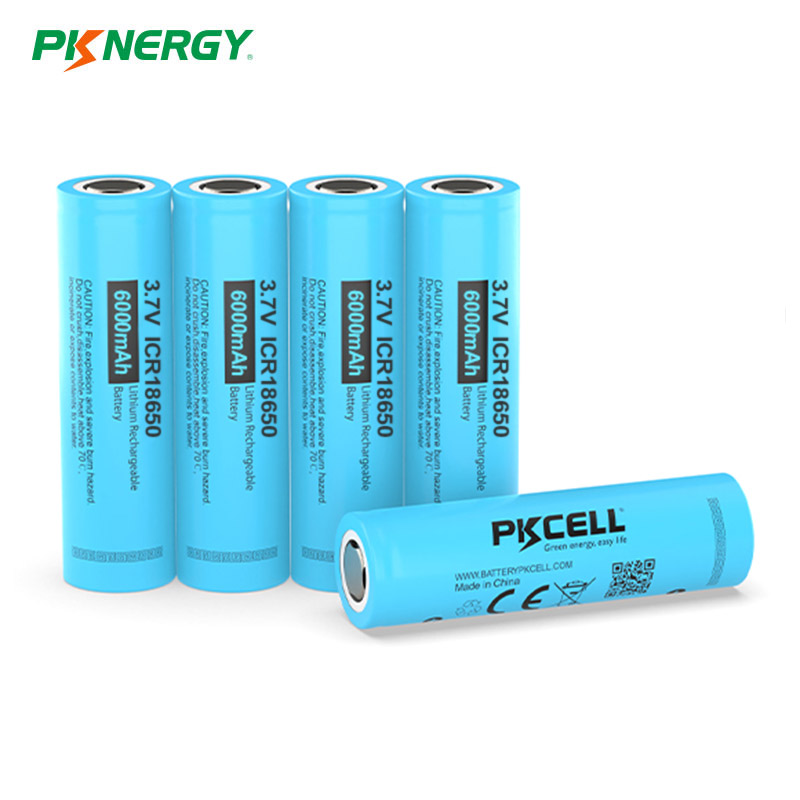

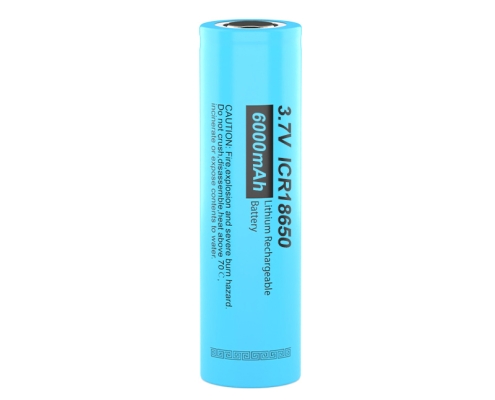

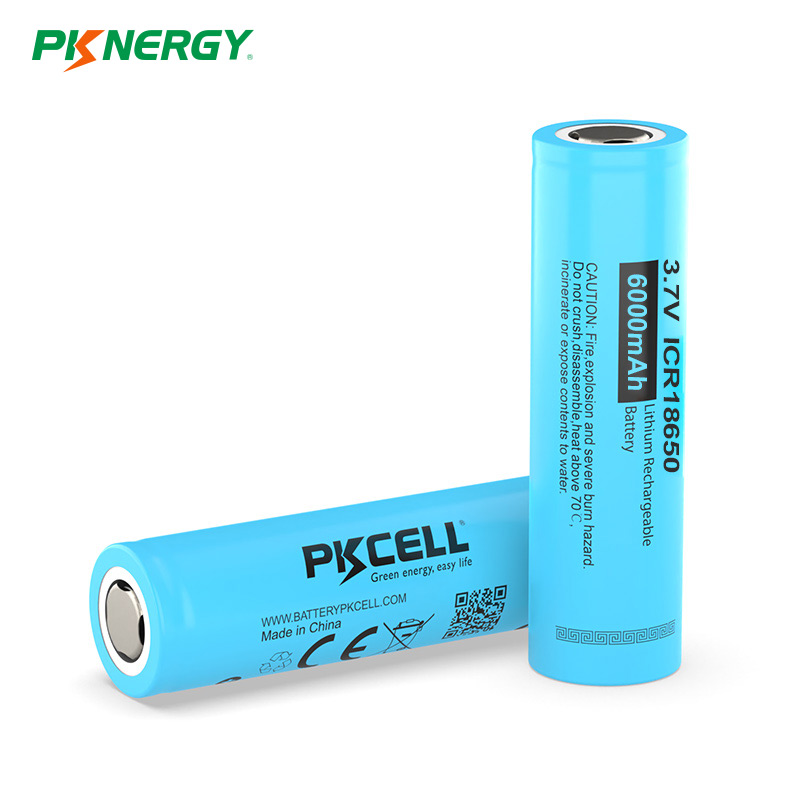

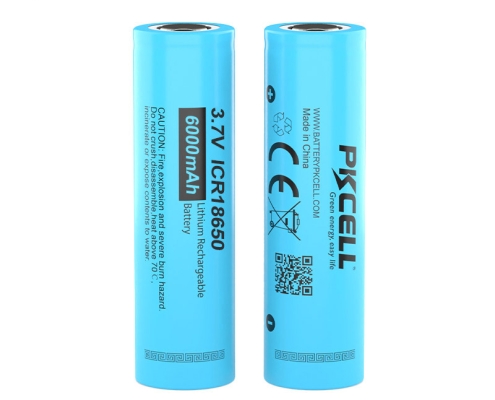

18650 3.7V 6000mAh
Reliable Power, Enhanced Safety
✔ High Energy Density – 6000mAh+ capacity for longer runtime, reducing replacements.
✔ Long Cycle Life – 1000+ charge cycles, ensuring durability.
✔ Stable High Discharge Rate – Consistent power output for high-performance devices.
✔ Wide Temperature Adaptability – Works reliably from -20℃ to 60℃.
✔ Advanced Safety Protection – Intelligent BMS prevents overcharging & short circuits.
? Custom voltage, capacity & BMS solutions available.
? Contact us today for a tailored battery solution!
SPECIFICATION
| NO. | ITEM | CHARACTERISTICS | REMARKS |
|---|---|---|---|
| 1 | Nominal Capacity | Minimum: 5800mAh Typical: 6000mAh | Standard discharge (0.2C) after standard charge |
| 2 | Nominal Voltage | 3.7V | — |
| 3 | Charging Cut-off Voltage | 4.2V ± 0.05V | CC/CV Charging |
| 4 | Discharge Cut-off Voltage | 3.0V | — |
| 5 | Standard Charge | Constant Current 0.2C (1200mA) Constant Voltage 4.2V 0.02C cut-off (120mA) | Charge Time: Approx. 6~7h |
| 6 | Maximum Constant Charging Current | 1500mA (0.25C) | Recommended ≤1200mA for longer cycle life |
| 7 | Standard Discharge | Discharge at 0.2C (1200mA) to 3.0V | At 25℃ |
| 8 | Maximum Continuous Discharging Current | 3000mA (0.5C) | Recommended continuous discharge ≤2000mA |
| 9 | Operating Temperature | Charge: 0~45℃ Discharge: -20~60℃ | — |
| 10 | Storage Temperature | -20~45℃ for 1 Month -10~35℃ for 6 Months | Recommended storage at 40~60% SOC |
| 11 | Storage Voltage | 3.7~3.85V | — |
| 12 | Environmental Request | RoHS | Product and packaging comply with RoHS standards |
Characteristics
Electrochemical performance characteristics
| No. | Item | Testing Method | Requirements |
|---|---|---|---|
| 1 | Fully Charged State | CCCV charge to 4.2V at 0.5C (3000mA), followed by constant voltage charging at 4.2V until current drops below 0.02C (120mA). | — |
| 2 | Rated Capacity | Charge per Item 1 at room temperature (20±5℃), rest for 1~2 hours, then discharge at constant current 0.2C (1200mA) to 3.0V. Testing terminates after 5 cycles or when any discharge time exceeds 5 hours. | Minimum Capacity ≥5800mAh Typical Capacity ≥6000mAh |
| 3 | Cycle Life @25℃ | Discharge at 0.2C (1200mA) to 3.0V, then charge using 0.5C CCCV to 4.2V with cut-off current 0.02C (120mA). Rest 10 min between charge/discharge cycles. Continue cycles until discharge capacity falls below 80% of rated capacity. | Cycle Life ≥300 Cycles |
| 4 | Internal Impedance | Internal impedance measured on a 50% charged battery at 1KHz AC at ambient temperature (20±2℃). | ≤120mΩ |
| 5 | Capacity Retention | Fully charge cells per Item 1, store at (20±2℃) for 28 days, then discharge at 0.2C (1200mA) to 3.0V. | Discharge Capacity ≥5100mAh |
| 6 | High Temperature Characteristics | Fully charge cells per Item 1, store at (55±2℃) for 2 hours, then discharge at 0.2C (1200mA) to 3.0V. | Discharge Capacity ≥4500mAh |
| 7 | Low Temperature Characteristics | Fully charge cells per Item 1, store at (-10±2℃) for 16~24 hours, then discharge at 0.2C (1200mA) to 3.0V. | Discharge Capacity ≥3600mAh |
| 8 | Cell Voltage during Transportation | Check open circuit voltage (OCV) of cells prior to delivery to customers. | 3.70V ~ 3.85V |
Our Services
1. Customization Support
- Tailored lithium-ion battery solutions based on your project requirements.
- Flexible options for voltage, capacity, size, and BMS integration.
- Professional design assistance from concept to final product.
2. Fast Production & Delivery
- Efficient manufacturing process ensuring quick turnaround times.
- Global shipping with secure packaging to protect your order.
3. Quality Assurance
- 100% quality inspection before delivery.
- Compliance with international safety and performance standards.
4. After-Sales Support
- Dedicated technical support for troubleshooting and guidance.
- Warranty coverage for peace of mind.
- Quick response to inquiries and issue resolution.
5. Professional Consultation
- Expert recommendations for the best battery solution for your application.
- Comprehensive project evaluation to optimize performance and cost.
Warranty
The warranty period for this product is 1 year from the date the product left the manufacturer’s door.
Battery Packing Label
The following warnings should be indicated on the battery pack labels.
- Use a specified charger.
- Do not throw the battery into fire, or heat.
- Do not short-circuit the battery terminals.
- Do not disassemble the battery.
