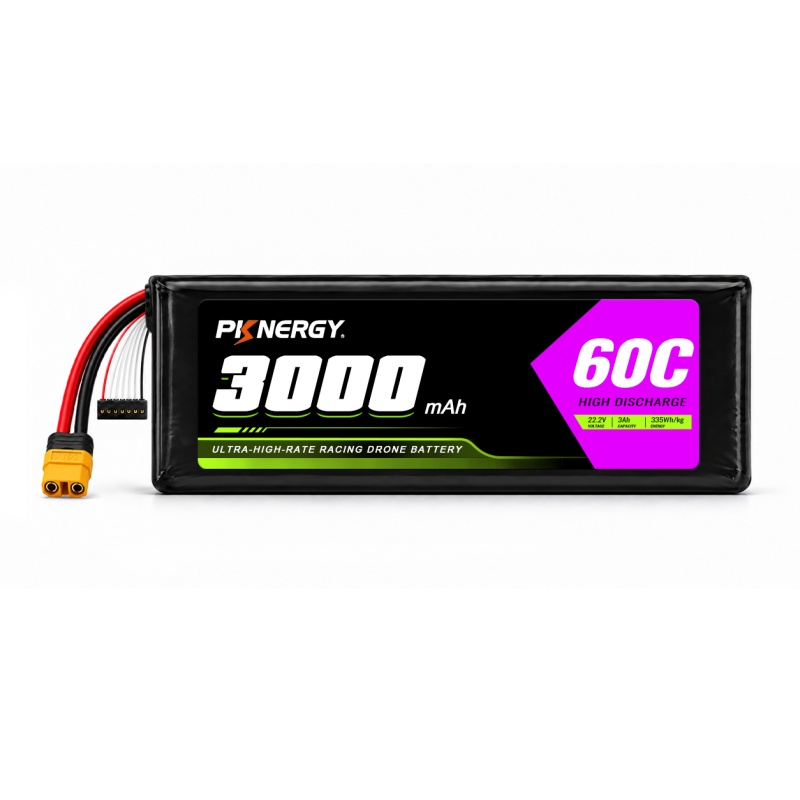

Ultra-High-Rate Racing Drone Battery
6543126 60C 22.2V 3000mAh
Ultra-High-Rate Racing Drone Battery for Extreme Power Output
3,000mAh High-Voltage Racing Power
The battery provides a nominal capacity of 3,000mAh, delivering a lightweight high-power solution for 6S racing drones requiring rapid response and strong current output.
60C Ultra-High-Rate Discharge Capability
Supports 180A continuous discharge and 200A peak discharge (≤0.1s), providing instant power delivery for rapid acceleration, aggressive maneuvers, and competitive FPV racing applications.
335Wh/kg Energy Density
Featuring an energy density of 335Wh/kg, the battery achieves an excellent balance between lightweight design and high-power discharge performance.
Compact High-Voltage Racing Design
With a nominal voltage of 22.2V, a weight of approximately 218g, and dimensions of 129 × 44 × 40mm, the battery is designed for high-voltage racing drones requiring compact size and fast power response.
Reliable Operating Performance
Supports 0°C to 45°C charging and -20°C to 55°C discharging, with a cycle life of ≥100 cycles for repeated high-performance operation.
SPECIFICATION
| No. | Item | Specification | Remarks |
|---|---|---|---|
| 1 | Battery Type | Ultra-High-Rate Racing Drone Battery | Battery pack |
| 2 | Battery Model | 22.2V 3000mAh | — |
| 3 | Cell Model | 6543126 | Pouch lithium-ion cell |
| 4 | Configuration | 6S1P | Series and parallel configuration |
| 5 | Nominal Voltage | 22.2V | — |
| 6 | Capacity | 3,000mAh | Rated capacity |
| 7 | Energy Density | 335Wh/kg | — |
| 8 | Continuous Discharge Current | 180A | Maximum continuous discharge current |
| 9 | Continuous Discharge Rate | 60C | — |
| 10 | Peak Discharge Current | 200A | ≤0.1s |
| 11 | Weight | Approx. 218g | — |
| 12 | Dimensions (L×W×T) | 129 × 44 × 40mm | Length × width × thickness |
| 13 | Charging Temperature | 0°C to 45°C | — |
| 14 | Discharging Temperature | -20°C to 55°C | — |
| 15 | Cycle Life | ≥100 cycles | — |
| 16 | Charge Cut-off Voltage | 25.2V | — |
| 17 | Discharge Cut-off Voltage | 15V | — |
Characteristics
Electrochemical performance characteristics
| No. | Item | Testing Method | Requirements |
| 1 | Fully Charged
State |
CCCV or Constant current charge to 4.2V @0.5C follow by a constant voltage holding at 4.2V until current drops below 26±2mA. | — |
| 2 | Rated Capacity | 0.5c CCCV 0.01c at 4.2V (per 6.1.1) at room temp. (20±5C), rest for 1-2 hrs then discharge at a constant current of 0.2C to 3.0V, testing will be terminated by either 5 cycles or any one discharge time exceeds 5 hrs | ≥2350mAh |
| 3 | Cycle Life
@25℃ |
Discharge to 3.0V @0.2C, then 0.5c CCCV 0.01C charge to 4.2V, rest for 10 min. discharge @ 0.2C to 3.0V and rest for 10 min. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity. | Cycle life ≥300 |
| 4 | Internal Impedance | Internal impedance is measured on a 50% charged battery at 1KHz AC at ambient temperature（20±2）℃ | — |
| 5 | Capacity Retention | Fully charge cells per 6.1.1, store them at (20±2)℃ for 28 days, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥2000mAh |
| 6 | High Temperature Characteristics | Fully charge cells per 6.1.1, store them at (55±2)℃ for 2 hours, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥2000mAh |
| 7 | Low Temperature Characteristics | Fully charge cells per 6.1.1, store them at (-10±2)℃ for 16~24 hours, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥1500mAh |
| 8 | Cell Voltage during Transportation | Check open circuit voltage (OCV) of cells prior to the delivery to customers | ≥14.4V |
Our Services
1. Customization Support
- Tailored li polymer battery solutions based on your project requirements.
- Flexible options for voltage, capacity, size, and BMS integration.
- Professional design assistance from concept to final product.
2. Fast Production & Delivery
- Efficient manufacturing process ensuring quick turnaround times.
- Global shipping with secure packaging to protect your order.
3. Quality Assurance
- 100% quality inspection before delivery.
- Compliance with international safety and performance standards.
4. After-Sales Support
- Dedicated technical support for troubleshooting and guidance.
- Warranty coverage for peace of mind.
- Quick response to inquiries and issue resolution.
5. Professional Consultation
- Expert recommendations for the best battery solution for your application.
- Comprehensive project evaluation to optimize performance and cost.
Warranty
The warranty period for this product is 1 year from the date the product left the manufacturer’s door.

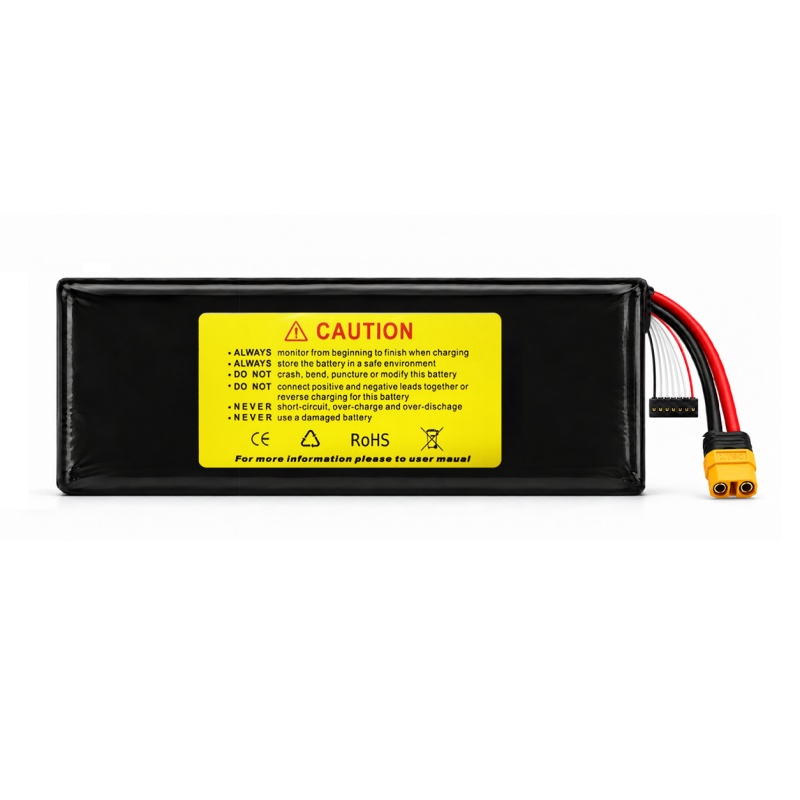

Battery Packing Label
The following warnings should be indicated on the battery pack labels.
- Use a specified charger.
- Do not throw the battery into fire, or heat.
- Do not short-circuit the battery terminals.
- Do not disassemble the battery.
