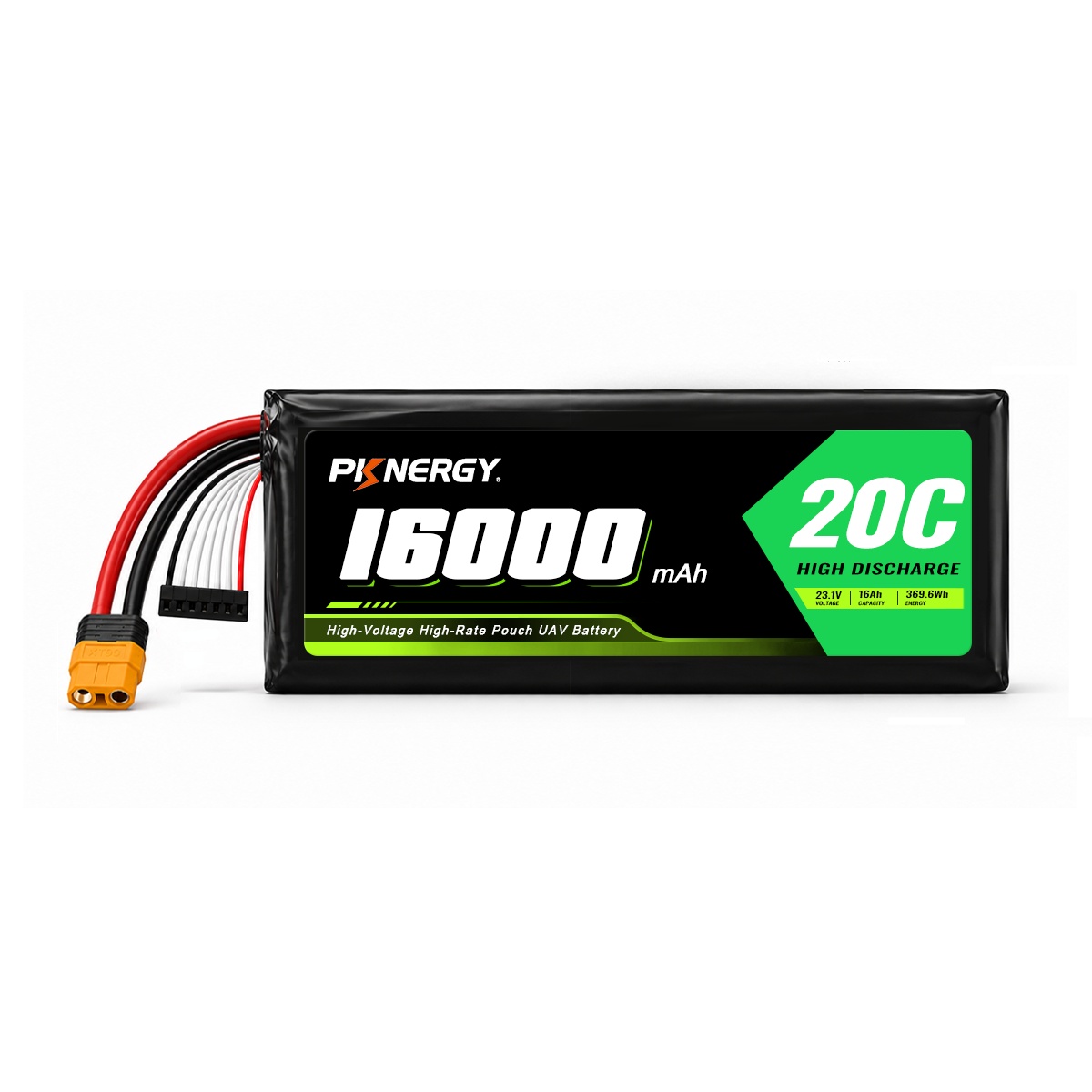

High-Voltage High-Rate Pouch UAV Battery
9074170HP 20C 23.1V 16000mAh
High-Voltage High-Rate Pouch UAV Battery with High Current Output
16,000mAh High Capacity
The battery provides a nominal capacity of 16,000mAh, delivering extended flight endurance and reliable energy supply for professional UAV platforms.
6C Continuous High-Rate Discharge
Supports 96A continuous discharge and 320A peak discharge (≤1s), providing strong current output for demanding UAV systems and dynamic flight conditions.
High-Voltage 6S Platform Design
With a nominal voltage of 23.1V, the battery is optimized for UAV platforms requiring higher voltage operation, improved efficiency, and stable power delivery.
High-Capacity Compact Design
With a weight of approximately 1,600g and dimensions of 192 × 77 × 56mm, the battery provides a compact high-energy solution for professional UAV applications.
Long Cycle Life Performance
Supports 0°C to 45°C charging and 0°C to 45°C discharging, with a cycle life of ≥300 cycles for reliable repeated operation.
SPECIFICATION
| No. | Item | Specification | Remarks |
|---|---|---|---|
| 1 | Battery Type | High-Voltage High-Rate Pouch UAV Battery | Battery pack |
| 2 | Battery Model | 23.1V 16000mAh | — |
| 3 | Cell Model | 9074170HP | High-power pouch cell |
| 4 | Configuration | 6S1P | Series and parallel configuration |
| 5 | Nominal Voltage | 23.1V | — |
| 6 | Capacity | 16,000mAh | Rated capacity |
| 7 | Continuous Discharge Current | 96A | Maximum continuous discharge current |
| 8 | Continuous Discharge Rate | 6C | — |
| 9 | Peak Discharge Current | 320A | ≤1s |
| 10 | Weight | Approx. 1,600g | — |
| 11 | Dimensions (L×W×T) | 192 × 77 × 56mm | Length × width × thickness |
| 12 | Charging Temperature | 0°C to 45°C | — |
| 13 | Discharging Temperature | 0°C to 45°C | — |
| 14 | Cycle Life | ≥300 cycles | — |
| 15 | Charge Cut-off Voltage | 26.4V | — |
| 16 | Discharge Cut-off Voltage | 18V | — |
Characteristics
Electrochemical performance characteristics
| No. | Item | Testing Method | Requirements |
| 1 | Fully Charged
State |
CCCV or Constant current charge to 4.2V @0.5C follow by a constant voltage holding at 4.2V until current drops below 26±2mA. | — |
| 2 | Rated Capacity | 0.5c CCCV 0.01c at 4.2V (per 6.1.1) at room temp. (20±5C), rest for 1-2 hrs then discharge at a constant current of 0.2C to 3.0V, testing will be terminated by either 5 cycles or any one discharge time exceeds 5 hrs | ≥2350mAh |
| 3 | Cycle Life
@25℃ |
Discharge to 3.0V @0.2C, then 0.5c CCCV 0.01C charge to 4.2V, rest for 10 min. discharge @ 0.2C to 3.0V and rest for 10 min. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity. | Cycle life ≥300 |
| 4 | Internal Impedance | Internal impedance is measured on a 50% charged battery at 1KHz AC at ambient temperature（20±2）℃ | — |
| 5 | Capacity Retention | Fully charge cells per 6.1.1, store them at (20±2)℃ for 28 days, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥2000mAh |
| 6 | High Temperature Characteristics | Fully charge cells per 6.1.1, store them at (55±2)℃ for 2 hours, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥2000mAh |
| 7 | Low Temperature Characteristics | Fully charge cells per 6.1.1, store them at (-10±2)℃ for 16~24 hours, then discharge the cells to 3.0V at 0.2C. | Discharge Capacity≥1500mAh |
| 8 | Cell Voltage during Transportation | Check open circuit voltage (OCV) of cells prior to the delivery to customers | ≥14.4V |
Our Services
1. Customization Support
- Tailored li polymer battery solutions based on your project requirements.
- Flexible options for voltage, capacity, size, and BMS integration.
- Professional design assistance from concept to final product.
2. Fast Production & Delivery
- Efficient manufacturing process ensuring quick turnaround times.
- Global shipping with secure packaging to protect your order.
3. Quality Assurance
- 100% quality inspection before delivery.
- Compliance with international safety and performance standards.
4. After-Sales Support
- Dedicated technical support for troubleshooting and guidance.
- Warranty coverage for peace of mind.
- Quick response to inquiries and issue resolution.
5. Professional Consultation
- Expert recommendations for the best battery solution for your application.
- Comprehensive project evaluation to optimize performance and cost.
Warranty
The warranty period for this product is 1 year from the date the product left the manufacturer’s door.

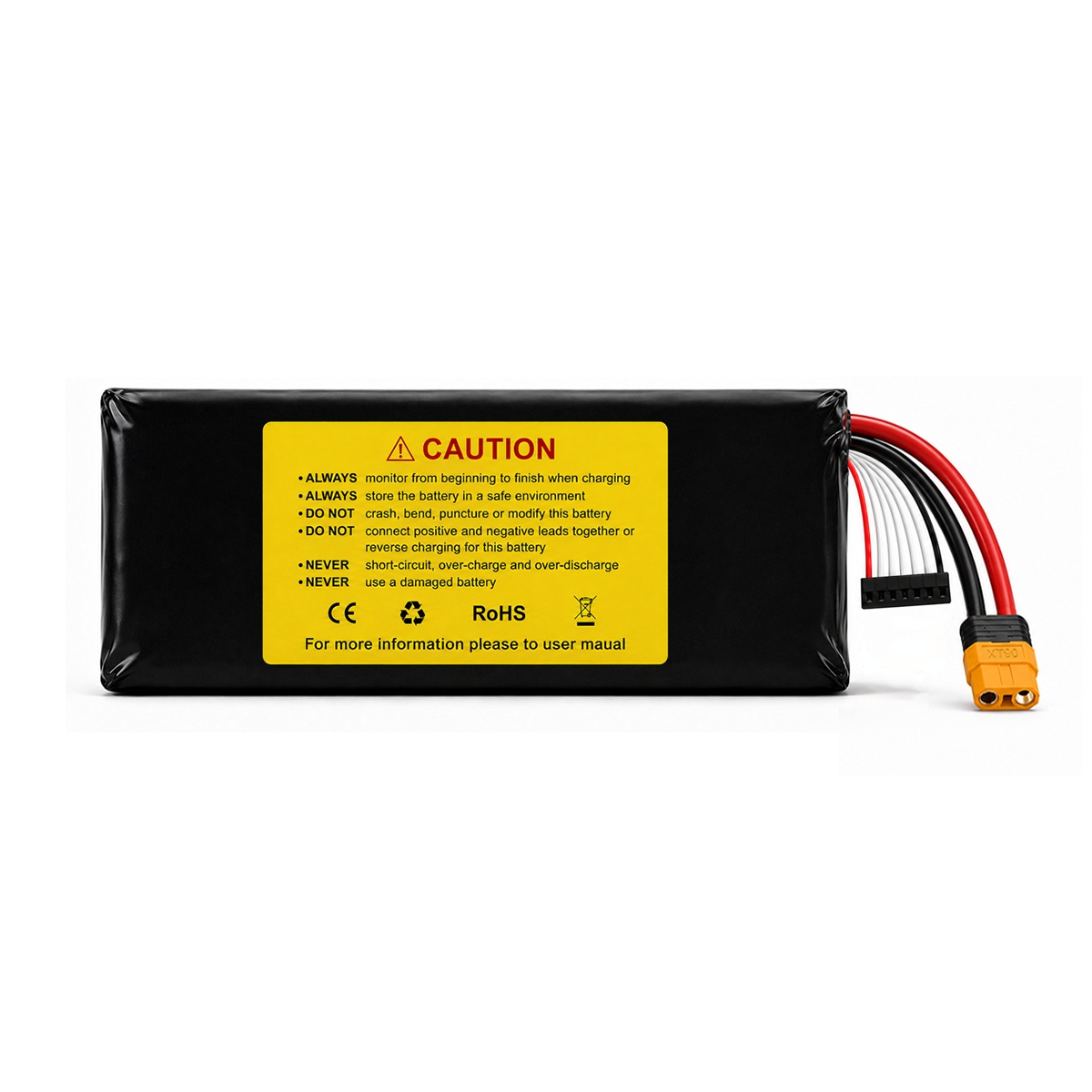

Battery Packing Label
The following warnings should be indicated on the battery pack labels.
- Use a specified charger.
- Do not throw the battery into fire, or heat.
- Do not short-circuit the battery terminals.
- Do not disassemble the battery.
